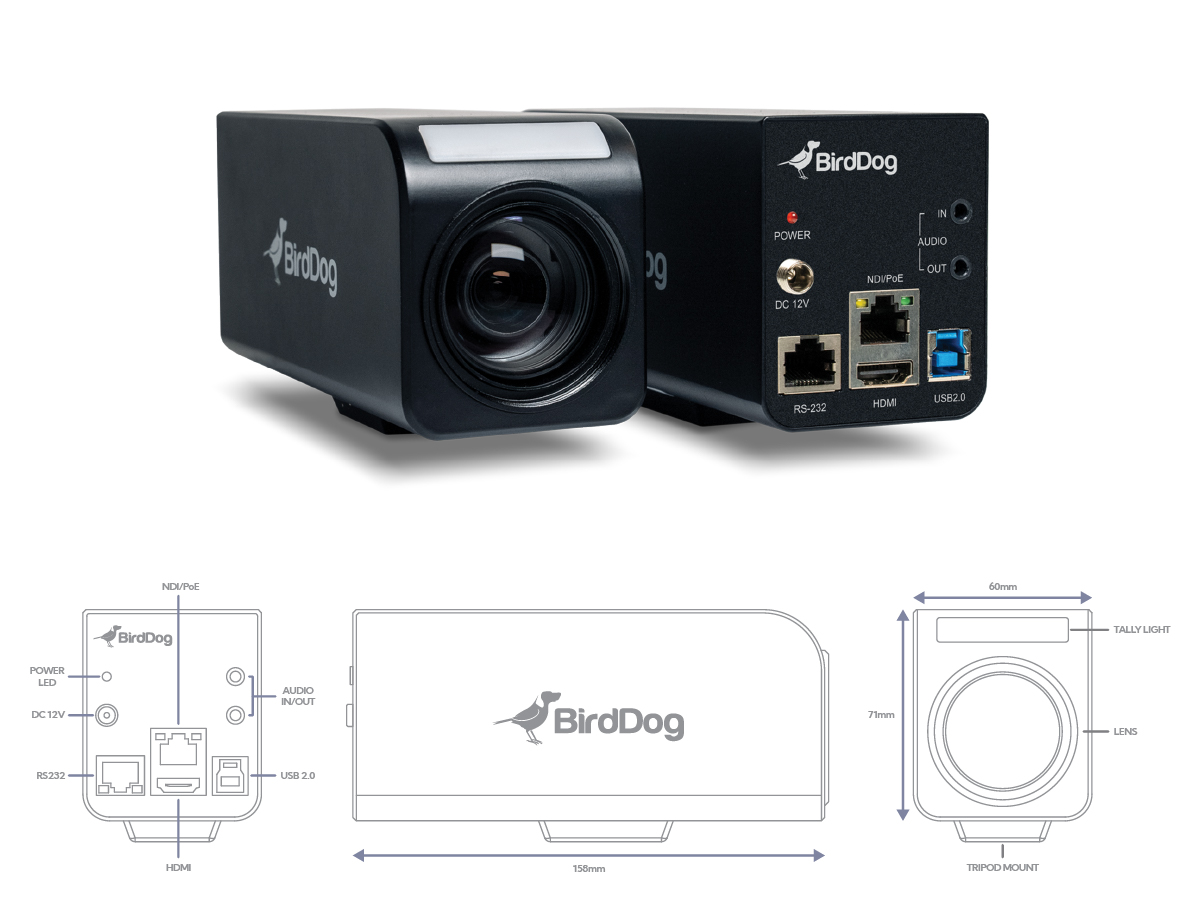

PF120

Unbox your new NDI® Box Cam.

Introducing PF120, the all new box camera that comes with all the amazing features you have come to expect from BirdDog cameras. Sony Exmor R back illuminated sensor, Full NDI®, with a 20x optical zoom, and a complete colour matrix all housed in a full metal enclosure that is built for life on the road.

You’ve been asking ever so nicely, so we went ahead and boxed it up for you.

Technical Specifications:

Max. Resolution:
1080p

Sensor:
Sony Exmor R Backlit

Sensor Resolution:
2.13MP

Sensor Format:
1/2.86”

Lens (W - T):
5.2 - 104mm

Optical Zoom:
20x

Digital Zoom:
16x

Horizontal Field of View:
55.8º(W) - 3.2º(T)

Vertical Field of View:
31.4°(W) - 1.8°(T)

Aperture:
F1.5(W) – F3.0(T)

Min. Illumination:
0.5 lux

Shutter Speed:
1/1 - 1/10000s

Filter Ring:
49mm

Focus:
Auto, Push, Manual

White Balance:
Auto, Indoor, Outdoor, Manual, OPW, ATW

Exposure:
Auto, Manual, Shutter/Iris Priority

Pan Movement:
NONE

Tilt Movement:
NONE

Preset Positions:
128

Preset Speed:
0-5 Level adjustable

Environmental:
Indoor

Quiteness:
Max 41dB at full speed zoom

Operating Temperature:
-10 to +50 (ºC)

Operating Humidity:
≤80%

Illumination:
-

Video Outputs:
Network Video/HDMI/USB2.0

4K Video Formats*:
-

HD Video Formats*:
• 1080p 60, 59.94, 50, 30, 29.97, 25
• 1080i 60, 59.94, 50
• 720p 60, 59.94, 50

HDMI Colour Space:
YCbCr, 4:2:2 12bit

SDI Colour Space:
-

Network Video Protocols:
Full Bandwidth NDI, NDI HX2 / HX3 in h.264, SRT, RTMP, RTSP

Analogue Audio I/O:
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)**

Digital Audio Output:
• Embedded with main HDMI, 24bit
• Embedded with SDI, 24bit
• Embedded with Network Video Stream

Onboard OLED Display:
None

Tally Light:
Bi-Colour Tally
Network PTZ Control:
NDI Control (auto configuring), VISCA IP

Serial PTZ Control:
1x RS232

Serial Control Protocol:
VISCA / Pelco D
Power Input:
12V DC, PoE (IEEE 802.11af)

Power Consumption:
Min. N/A - Max. 9W

Dimensions:
60x158x71mm

Weight:
0.666Kg

Mount Options:
Tripod
Network Interface:
1x RJ45(1000Mb)

Web Control Interface:
Full control via Web/Mobile UI inc. Scene presets, Restful API

* Limited Resolution support over USB.
** NDI, HDMI, SDI only.

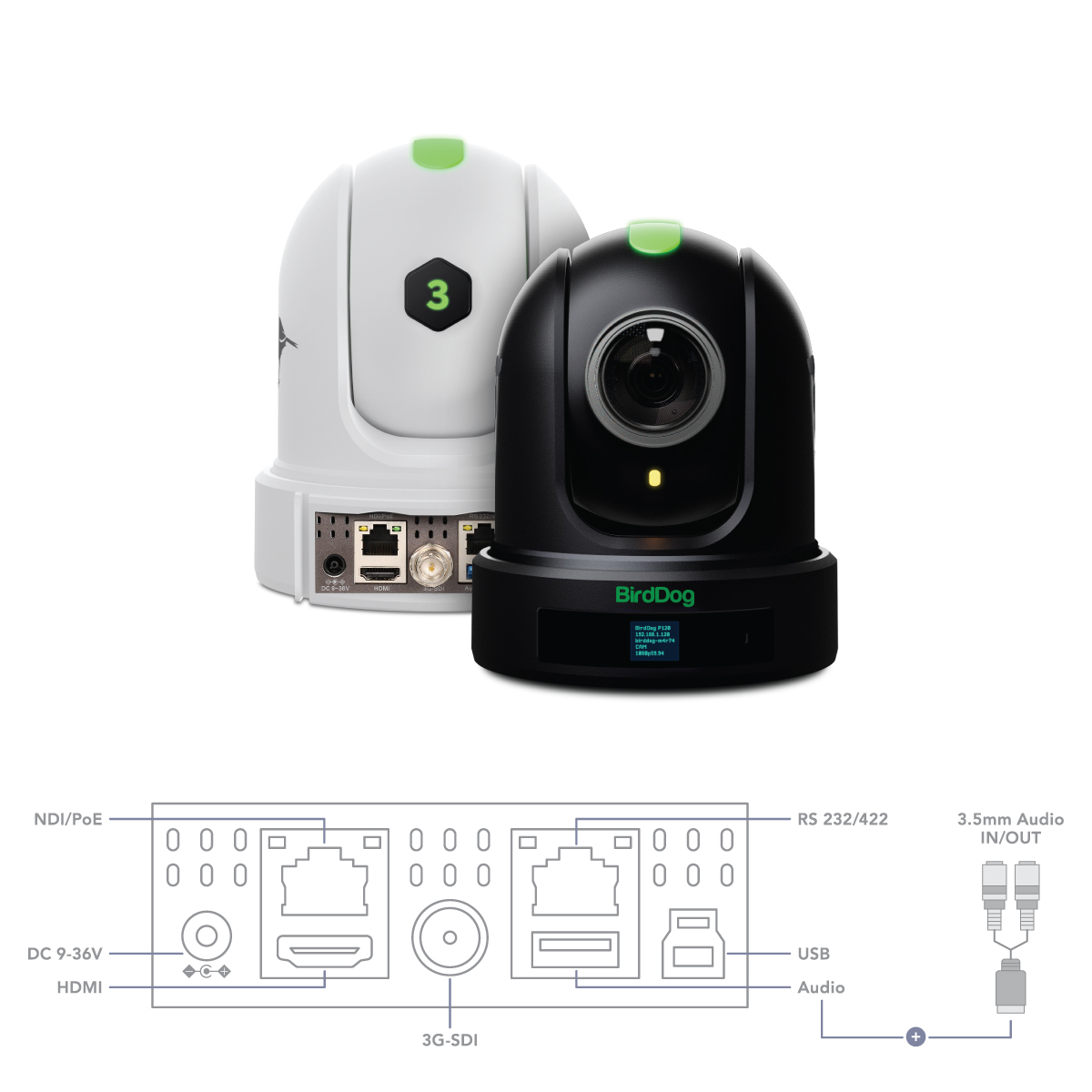

P110

Full NDI® PTZ Cameras. Levelled up.

P110 sets a new benchmark in format support, connection flexibility, and picture quality, with excellent lowlight performance. Housing a Sony Exmor R back-illuminated sensor and BirdDog’s custom NDI® silicon, P110 offers four output options including NDI®, SDI, HDMI for live production work, and UVC USB for connecting to Zoom & Teams. Output multiple flavours of NDI® including Full NDI®, NDI®|HX2, and HX3, as well as other options including SRT, h.264, and Cloud Connect*. It even supports FreeD output for AR/VR workflows. There’s also an OLED display to show the IP address, 360° mohawk tally, filter thread, and free Auto-Tracking available.
And yes, the cameras support NDI® 5 natively.

Technical Specifications:

Max. Resolution:
1080p

Sensor:
Sony Exmor R Backlit

Sensor Resolution:
2.2MP

Sensor Format:
1/2.86”

Lens (W - T):
4.7 - 47mm

Optical Zoom:
10x

Digital Zoom:
12x

Horizontal Field of View:
60.9º(W) - 6.43º(T)

Vertical Field of View:
34.3°(W) - 3.6°(T)

Aperture:
F1.5(W) – F3.0(T)

Min. Illumination:
0.5 lux

Shutter Speed:
1/1 - 1/30000s

Filter Ring:
49mm

Focus:
Auto, Push, Manual

White Balance:
Auto, Indoor, Outdoor, Manual, OPW, ATW, Temp (Kelvin)

Exposure:
Auto, Manual, Shutter/Iris Priority

Pan Movement:
Horizontal: ±175º

Tilt Movement:
Vertical: +90º to -30º

Preset Positions:
128 (Speed adjustable: Up to 150°/s)

Preset Speed:
0-5 Level adjustable

Environmental:
Indoor

Quiteness:
Max 41dB at full speed zoom

Operating Temperature:
-10 to +50 (ºC)

Operating Humidity:
≤80%

Illumination:
-

Video Outputs:
Network Video/HDMI/USB2.0

4K Video Formats*:
-

HD Video Formats*:
• 1080p 60, 59.94, 50, 30, 29.97, 25
• 1080i 60, 59.94, 50
• 720p 60, 59.94, 50

HDMI Colour Space:
YCbCr, 4:2:2 12bit

SDI Colour Space:
YCbCr, 4:2:2 10bit

Network Video Protocols:
Full Bandwidth NDI, NDI HX2 / HX3 in h.264, SRT, RTMP, RTSP

Analogue Audio I/O:
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)**

Digital Audio Output:
• Embedded with main HDMI, 24bit
• Embedded with SDI, 24bit
• Embedded with Network Video Stream

Onboard OLED Display:
5-line, RGB Color, Graphical

Tally Light:
Bi-Colour Full overhead and rear
(w/included 1-3 number silicon plugs)
Network PTZ Control:
NDI Control (auto configuring), VISCA IP

Serial PTZ Control:
1x RJ45: RS232/RS422

Serial Control Protocol:
VISCA / Pelco D
Power Input:
12V DC, PoE+ (IEEE 802.3at)

Power Consumption:
Min. 11.1W - Max. 15.2W

Dimensions:
145x152x171mm

Weight:
1.0Kg

Mount Options:
Ceiling mount, Wall mount, Tripod
Network Interface:
1x RJ45(1000Mb)

Web Control Interface:
Full control via Web/Mobile UI inc. Scene presets, Restful API

* Limited Resolution support over USB.
** NDI, HDMI, SDI only.

P120

Full NDI® PTZ Cameras. Levelled up.

P120 sets a new benchmark in format support, connection flexibility, and picture quality, with excellent lowlight performance. Housing a Sony Exmor R back-illuminated sensor and BirdDog’s custom NDI® silicon, P120 offers four output options including NDI®, SDI, HDMI for live production work, and UVC USB for connecting to Zoom & Teams. Output multiple flavours of NDI® including Full NDI®, NDI®|HX2, and HX3, as well as other options including SRT, h.264, and Cloud Connect*. It even supports FreeD output for AR/VR workflows. There’s also an OLED display to show the IP address, 360° mohawk tally, filter thread, and free Auto-Tracking available.
And yes, the cameras support NDI® 5 natively.

Technical Specifications:

Max. Resolution:
1080p

Sensor:
Sony Exmor R Backlit

Sensor Resolution:
2.2MP

Sensor Format:
1/2.86”

Lens (W - T):
5.2 - 104mm

Optical Zoom:
20x

Digital Zoom:
16x

Horizontal Field of View:
55.8º(W) - 3.2º(T)

Vertical Field of View:
31.4°(W) - 1.8°(T)

Aperture:
F1.5(W) – F3.0(T)

Min. Illumination:
0.5 lux

Shutter Speed:
1/1 - 1/10000s

Filter Ring:
49mm

Focus:
Auto, Push, Manual

White Balance:
Auto, Indoor, Outdoor, Manual, OPW, ATW, Temp (Kelvin)

Exposure:
Auto, Manual, Shutter/Iris Priority

Pan Movement:
Horizontal: ±175º

Tilt Movement:
Vertical: +90º to -30º

Preset Positions:
128 (Speed adjustable: Up to 150°/s)

Preset Speed:
0-5 Level adjustable

Environmental:
Indoor

Quiteness:
Max 41dB at full speed zoom

Operating Temperature:
-10 to +50 (ºC)

Operating Humidity:
≤80%

Illumination:
-

Video Outputs:
Network Video/HDMI/USB2.0

4K Video Formats*:
-

HD Video Formats*:
• 1080p 60, 59.94, 50, 30, 29.97, 25
• 1080i 60, 59.94, 50
• 720p 60, 59.94, 50

HDMI Colour Space:
YCbCr, 4:2:2 12bit

SDI Colour Space:
YCbCr, 4:2:2 10bit

Network Video Protocols:
Full Bandwidth NDI, NDI HX2 / HX3 in h.264, SRT, RTMP, RTSP

Analogue Audio I/O:
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)**

Digital Audio Output:
• Embedded with main HDMI, 24bit
• Embedded with SDI, 24bit
• Embedded with Network Video Stream

Onboard OLED Display:
5-line, RGB Color, Graphical

Tally Light:
Bi-Colour Full overhead and rear
(w/included 1-3 number silicon plugs)
Network PTZ Control:
NDI Control (auto configuring), VISCA IP

Serial PTZ Control:
1x RJ45: RS232/RS422

Serial Control Protocol:
VISCA / Pelco D
Power Input:
12V DC, PoE+ (IEEE 802.3at)

Power Consumption:
Min. 11.1W - Max. 15.2W

Dimensions:
145x152x171mm

Weight:
1.0Kg

Mount Options:
Ceiling mount, Wall mount, Tripod
Network Interface:
1x RJ45(1000Mb)

Web Control Interface:
Full control via Web/Mobile UI inc. Scene presets, Restful API

* Limited Resolution support over USB.
** NDI, HDMI, SDI only.

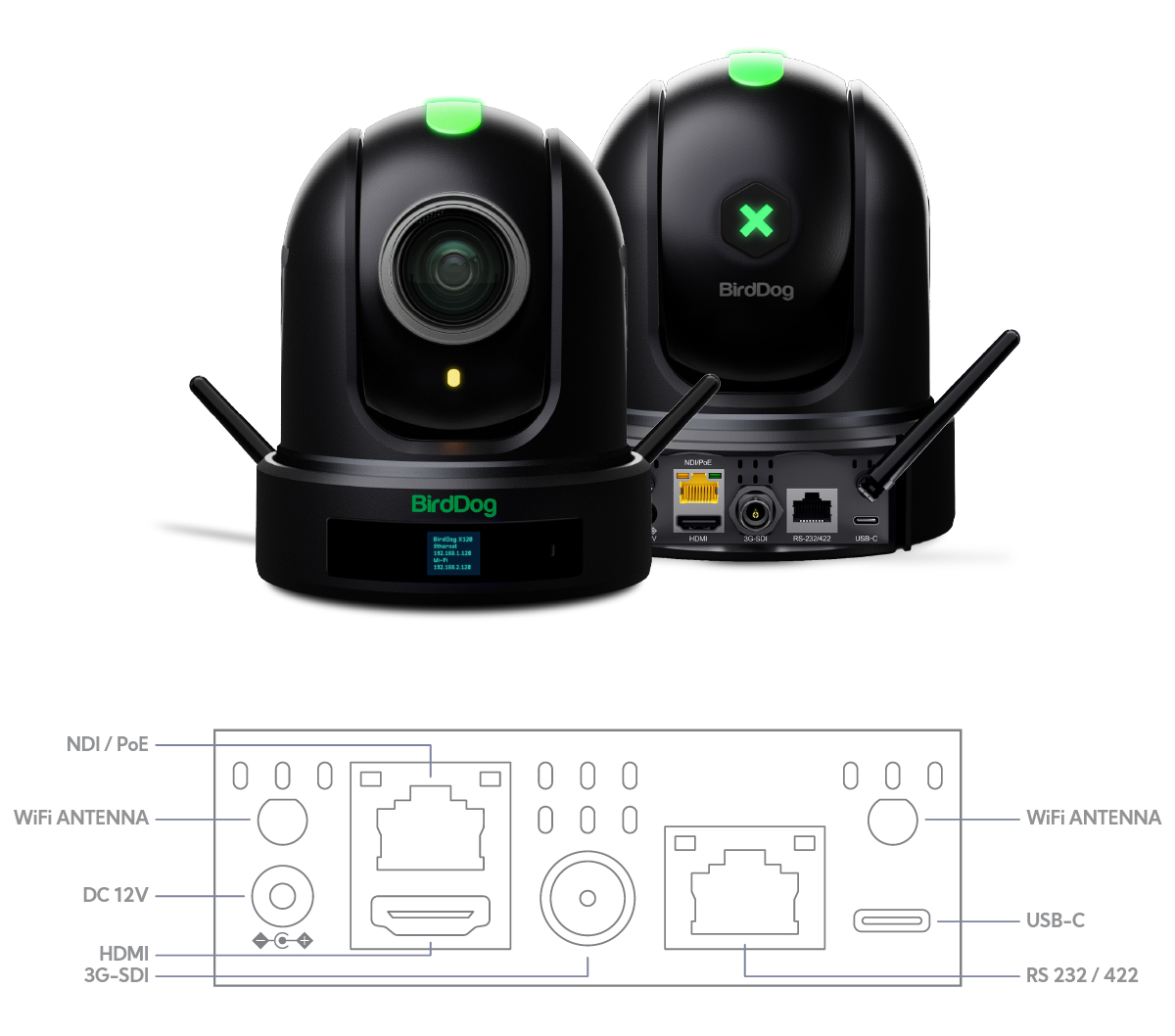

X120

The future of live production and live streaming is here.

The World’s First NDI HX3 Wi-Fi Production PTZ has arrived, delivering unprecedented flexibility and freedom, with no video cables needed. X120 packs an amazing Sony Exmor R image broadcast sensor to deliver fantastic low light capabilities and incredible picture performance. In true BirdDog style, there is an OLED display to show the IP address, 360° mohawk tally, filter thread, and free auto-tracking and colour shading via Cam Control.

X120 also offers four hardwired connection options along with Wi-Fi making it the most connected PTZ camera on the planet, Additional connection options include NDI® over Ethernet, SDI, HDMI for live production work, and UVC USB for connecting to Zoom & Teams. The X120 delivers production freedom like never before.

Technical Specifications:

Max. Resolution:
1080p

Sensor:
Sony Exmor R Backlit

Sensor Resolution:
2.2MP

Sensor Format:
1/2.86”

Lens (W - T):
5.2 - 104mm

Optical Zoom:
20x

Digital Zoom:
None

Horizontal Field of View:
55.8º(W) - 3.2º(T)

Vertical Field of View:
31.4°(W) - 1.8°(T)

Aperture:
F1.5(W) – F3.0(T)

Min. Illumination:
0.5 lux

Shutter Speed:
1/60 - 1/100000s

Filter Ring:
49mm

Focus:
Auto, Push, Manual

White Balance:
Auto, Indoor, Outdoor, Manual, OPW, ATW, Temp (Kelvin)

Exposure:
Auto, Manual, Shutter/Iris Priority

Pan Movement:
Horizontal: ±175º

Tilt Movement:
Vertical: +90º to -30º

Preset Positions:
128 (Speed adjustable: Up to 150°/s)

Preset Speed:
0-5 Level adjustable

Environmental:
Indoor

Quiteness:
Max 43dB at full speed zoom

Operating Temperature:
-10 to +50 (ºC)

Operating Humidity:
≤80%

Illumination:
-

Video Outputs:
Network Video/SDI/HDMI/USB-C (UVC/UAC)

4K Video Formats*:
-

HD Video Formats*:
• 1080p 60, 59.94, 50, 30, 29.97, 25
• 720p 60, 59.94, 50

HDMI Colour Space:
YUV 4:2:0

SDI Colour Space:
YUV 4:2:0

Network Video Protocols:
NDI HX2 in h.264, NDI HX2 in HEVC,
NDI HX3 in h.264, NDI HX3 in HEVC

Analogue Audio I/O:
None

Digital Audio Output:
None

Onboard OLED Display:
5-line, RGB Color, Graphical

Tally Light:
Bi-Colour Full overhead and rear
(w/included 1-3 number silicon plugs)
Network PTZ Control:
NDI HX, VISCA IP

Serial PTZ Control:
1x RJ45: RS232/RS422

Serial Control Protocol:
VISCA / Pelco D
Power Input:
12V DC, PoE+ (IEEE 802.3at)

Power Consumption:
Min. 11.1W - Max. 15.2W

Dimensions:
145x152x171mm (without antennas)

Weight:
1.0Kg

Mount Options:
Ceiling mount, Wall mount, Tripod
Network Interface:
1x RJ45(1000Mb), Wi-Fi IEEE 802.11ac

Web Control Interface:
Full control via Web/Mobile UI inc. Scene presets, Restful API

* Limited Resolution support over USB.
** NDI, HDMI, SDI only.

P200

NDI® has never looked so good.

Designed for serious production the image quality of P200 is best in class. By teaming up BirdDog’s custom NDI® silicon chip, a Sony Backlit Sensor, and a true Sony Image Module, P200 has lightening auto focus, incredibly sharp images, and insanely fast zoom.

P200 has frame rates up to 1080p60, 30x optical zoom, and features independent, live triple outputs in SDI, HDMI, and Full NDI®.

Technical Specifications:

Max. Resolution:
1080p

Sensor:
Sony Exmor R Backlit

Sensor Resolution:
2.13MP

Sensor Format:
1/2.8”

Lens (W - T):
4.3 - 129mm

Optical Zoom:
30x

Digital Zoom:
None

Horizontal Field of View:
63.7°(W) – 2.3°(T)

Vertical Field of View:
35.8°(W) - 1.3°(T)

Aperture:
F1.6(W) – F4.7(T)

Min. Illumination:
Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode),
0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode)

Shutter Speed:
1/1 - 1/10000s

Filter Ring:
None

Focus:
Auto, Push, Manual

White Balance:
Auto, Indoor, Outdoor, Manual, OPW, ATW

Exposure:
Auto, Manual, Shutter/Iris Priority

Pan Movement:
Horizontal: ±175º

Tilt Movement:
Vertical: +90º to -30º

Preset Positions:
128 (Speed adjustable: Up to 150°/s)

Preset Speed:
0-5 Level adjustable

Environmental:
Indoor

Quiteness:
Max 41dB at full speed zoom

Operating Temperature:
-10 to +50 (ºC)

Operating Humidity:
≤80%

Illumination:
-

Video Outputs:
Network Video/SDI/HDMI

4K Video Formats*:
-

HD Video Formats*:
• 1080p 60, 59.94, 50, 30, 29.97, 25
• 1080i 60, 59.94, 50
• 720p 60, 59.94, 50

HDMI Colour Space:
YCbCr, 4:2:2 12bit

SDI Colour Space:
YCbCr, 4:2:2 10bit

Network Video Protocols:
Full Bandwidth NDI, NDI HX2 / HX3
in h.264, SRT, RTMP, RTSP

Analogue Audio I/O:
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)**

Digital Audio Output:
• Embedded with main HDMI, 24bit
• Embedded with SDI, 24bit
• Embedded with Network Video Stream

Onboard OLED Display:
None

Tally Light:
Bi-Colour Tally
Network PTZ Control:
NDI Control (auto configuring), VISCA IP

Serial PTZ Control:
2x RJ45: RS232/RS422/RS485

Serial Control Protocol:
VISCA / Pelco D
Power Input:
12V DC, PoE+ (IEEE 802.3at)

Power Consumption:
Min. 15.2W - Max. 19.7W

Dimensions:
160x178x220mm

Weight:
2.0Kg

Mount Options:
Ceiling mount, Wall mount, Tripod
Network Interface:
1x RJ45(1000Mb)

Web Control Interface:
Full control via Web/Mobile UI inc. Scene presets, Restful API

* Limited Resolution support over USB.
** NDI, HDMI, SDI only.

P240

The game-changing camera just got more game.

Building upon the NDI® PTZ category defining P200, the all new P240 introduces an updated Sony Exmor R broadcast sensor to deliver increased light sensitivity, and best in class image quality and performance.

P240 offers three output options including NDI®, SDI, and HDMI for ultimate video flexibility while Balanced XLR audio adds professional audio connections.

IP output options include multiple flavours of NDI® including Full NDI®, NDI®|HX2, and HX3, SRT, and h.264.
Free Auto-Tracking, and additional features comprising an OLED display to show the IP address, 360° mohawk tally, filter thread, safety anchor point, and carry handle make P240 the best choice for live productions.

Technical Specifications:

Max. Resolution:
1080p

Sensor:
Sony Exmor R Backlit

Sensor Resolution:
8.5MP

Sensor Format:
1/2.5”

Lens (W - T):
4.4 - 88.4

Optical Zoom:
Up to 40x (When running in native scan mode)

Digital Zoom:
SRZ (Super Resolution Zoom):
40x in Full HD

Horizontal Field of View:
70.2°(W) – 4.1°(T)

Vertical Field of View:
39.5°(W) - 2.3°(T)

Aperture:
F2.0 (W) – F3.8 (T)

Min. Illumination:
Color: 0.4lux (1/30s, 50%, High Sensitivity mode On),
1.6lux (1/30s, 50%, High Sensitivity mode Off),
0.06lux(1/4s(1/3s),50%, High Sensitivity mode On)

Shutter Speed:
1/1 - 1/10000s

Filter Ring:
58mm

Focus:
Auto Focus (Trigger/Interval),
Manual Focus (Variable Speed),
One Push Trigger, Near Limit

White Balance:
AUTO, ATW, Indoor, Outdoor,
One Push WB, Manual WB, Outdoor Auto,
Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)

Exposure:
Full Auto, Gain, Gain Limit, Shutter Priority,
Iris Priority, Manual, Bright, Slow Shutter,
Max/Min Shutter Limit, Slow AE

Pan Movement:
Horizontal: ±175º

Tilt Movement:
Vertical: +90º to -30º

Preset Positions:
128 (Speed adjustable: Up to 150°/s)

Preset Speed:
0-5 Level adjustable

Environmental:
Indoor

Quiteness:
Max 41dB at full speed zoom

Operating Temperature:
-10 to +40 (ºC)

Operating Humidity:
≤80%

Illumination:
-

Video Outputs:
Network Video/SDI/HDMI

4K Video Formats*:
-

HD Video Formats*:
• 1080p 60, 59.94, 50, 30, 29.97, 25
• 1080i 60, 59.94, 50
• 720p 60, 59.94, 50

HDMI Colour Space:
YCbCr, 4:2:2 12bit

SDI Colour Space:
YCbCr, 4:2:2 10bit

Network Video Protocols:
Full Bandwidth NDI, NDI HX2 / HX3
in h.264, SRT, RTMP, RTSP

Analogue Audio I/O:
IN: balanced XLR (via breakout cable)
with 48V Phantom power,
unbalanced 3.5mm TRS (stereo)**
OUT: balanced XLR (via breakout cable),
unbalanced 3.5mm TRS (stereo)**

Digital Audio Output:
• Embedded with main HDMI, 24bit
• Embedded with SDI, 24bit
• Embedded with Network Video Stream

Onboard OLED Display:
5-line, RGB Color, Graphical

Tally Light:
Bi Colour Full overhead and rear
(w/included 1-3 number silicon plugs)
Network PTZ Control:
NDI Control (auto configuring), VISCA IP

Serial PTZ Control:
2x RJ45: RS232/RS422/RS485

Serial Control Protocol:
VISCA / Pelco D
Power Input:
12V DC, PoE+ (IEEE 802.3at)

Power Consumption:
Max. 22.5W

Dimensions:
163x199x231mm

Weight:
2.395kg

Mount Options:
Ceiling mount, Wall mount, Tripod
Network Interface:
1x RJ45(1000Mb)

Web Control Interface:
Full control via Web/Mobile UI inc. Scene presets, Restful API

* Limited Resolution support over USB.
** NDI, HDMI, SDI only.

P400

Stunning 4K NDI® with incredible colour tools.

P400 features stunning 4K resolution NDI and allows chroma subsampling in your choice of 4:2:0 or 4:2:2. Wow.

P400 teams up BirdDog’s custom NDI® silicon chip, a 4K Sony CMOS Backlit sensor, and a true Sony Image Module. Double Wow.

P400 includes professional-level colour tools including Colour Matrix control, Black level, Gamma including 512 pre-set gamma positions. Triple Wow.

Technical Specifications:

Max. Resolution:
UHD

Sensor:
Sony Backlit

Sensor Resolution:
8.5MP

Sensor Format:
1/2.5”

Lens (W - T):
4.4 - 88.4

Optical Zoom:
20x

Digital Zoom:
SRZ (Super Resolution Zoom):
30x in 4K, 40x in Full HD

Horizontal Field of View:
70.2°(W) – 4.1°(T)

Vertical Field of View:
39.4°(W) - 2.3°(T)

Aperture:
F2.0 (W) – F3.8 (T)

Min. Illumination:
Color: 0.4lux (1/30s, 50%, High Sensitivity mode On),
1.6lux (1/30s, 50%, High Sensitivity mode Off),
0.06lux(1/4s(1/3s),50%, High Sensitivity mode On)

Shutter Speed:
1/1 - 1/10000s

Filter Ring:
None

Focus:
Auto Focus (Trigger/Interval),
Manual Focus (Variable Speed),
One Push Trigger, Near Limit

White Balance:
AUTO, ATW, Indoor, Outdoor,
One Push WB, Manual WB, Outdoor Auto,
Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)

Exposure:
Full Auto, Gain, Gain Limit, Shutter Priority,
Iris Priority, Manual, Bright, Slow Shutter,
Max/Min Shutter Limit, Slow AE

Pan Movement:
Horizontal: ±175º

Tilt Movement:
Vertical: +90º to -30º

Preset Positions:
128 (Speed adjustable: Up to 150°/s)

Preset Speed:
0-5 Level adjustable

Environmental:
Indoor

Quiteness:
Max 49dB at full speed zoom

Operating Temperature:
-10 to +40 (ºC)

Operating Humidity:
≤80%

Illumination:
-

Video Outputs:
Network Video/6G-SDI/HDMI

4K Video Formats*:
• 4Kp 29.97, 25, 24, 23.98

HD Video Formats*:
• 1080p 60, 59.94, 50, 29.97, 25, 24, 23.98
• 1080i 60, 59.94, 50
• 720p 60, 59.94, 50

HDMI Colour Space:
YCbCr, 4:2:2 12bit
RGB 8bit

SDI Colour Space:
YCbCr, 4:2:2 10bit

Network Video Protocols:
Full Bandwidth NDI

Analogue Audio I/O:
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)**

Digital Audio Output:
• Embedded with main HDMI, 24bit
• Embedded with SDI, 24bit
• Embedded with Network Video Stream

Onboard OLED Display:
None

Tally Light:
Bi-Colour Tally
Network PTZ Control:
NDI Control (auto configuring), VISCA IP

Serial PTZ Control:
2x RJ45: RS232/RS422/RS485

Serial Control Protocol:
VISCA / Pelco D
Power Input:
12V DC, PoE+ (IEEE 802.3at)

Power Consumption:
Min. 23.2W – Max. 26.8W

Dimensions:
195x164x217mm

Weight:
2.7kg

Mount Options:
Ceiling mount, Wall mount, Tripod
Network Interface:
1x RJ45(1000Mb)

Web Control Interface:
Full control via Web/Mobile UI inc. Scene presets, Restful API

* Limited Resolution support over USB.
** NDI, HDMI, SDI only.

P4K

Hello Sony 1” Sensor. Meet NDI.

P4K is the real deal. A huge 1” Sony Exmor R CMOS back lit Sensor and 14.4 million effective pixels enable P4K to deliver stunning pictures in 4K resolutions with Full Bandwidth NDI. Excellent light sensitivity makes P4K perfect for all broadcast applications, sports, remote studios, newsrooms, house of worship,+ and any shoot where quality matters.

Technical Specifications:

Max. Resolution:
UHD

Sensor:
Sony Exmor R Backlit

Sensor Resolution:
14.2MP

Sensor Format:
1”

Lens (W - T):
9.3 - 111.6mm

Optical Zoom:
12x

Digital Zoom:
SRZ (Super Resolution Zoom):
18x in 4K, 24x in Full HD

Horizontal Field of View:
64.6°(W) – 6.1°(T)

Vertical Field of View:
36.3°(W) - 3.4°(T)

Aperture:
F2.8 Constant (W)~(T), 16 Steps

Min. Illumination:
0.5 lux (1/30 sec, 50%, High Sensitivity mode On)
2.0 lux (1/30 sec, 50%, High Sensitivity mode Off)
0.067 lux (1/4 sec (1/3 sec), 50%, High Sensitivity mode On)
0.267 lux (1/4 sec (1/3 sec), 50%, High Sensitivity mode Off)

Shutter Speed:
1/8 - 1/10000s

Filter Ring:
None

Focus:
Auto Focus (Trigger/Interval),
Manual Focus (Variable Speed),
One Push Trigger, Near Limit

White Balance:
AUTO, ATW, Indoor, Outdoor,
One Push WB, Manual WB, Outdoor Auto,
Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)

Exposure:
Full Auto, Gain, Gain Limit, Shutter Priority,
Iris Priority, Manual, Bright, Slow Shutter,
Max/Min Shutter Limit, Slow AE

Pan Movement:
Horizontal: ±175º

Tilt Movement:
Vertical: +90º to -30º

Preset Positions:
128 (Speed adjustable: Up to 150°/s)

Preset Speed:
0-5 Level adjustable

Environmental:
Indoor

Quiteness:
Max 49dB at full speed zoom

Operating Temperature:
-10 to +40 (ºC)

Operating Humidity:
≤80%

Illumination:
-

Video Outputs:
Network Video, 4K: Main 4K HDMI Type-A (x1) 6G-SDI (x2)
or Dual Link 3G-SDI(2SI only) x1.
HD: Main HD HDMI Type-A (x1) 3G-SDI x2

4K Video Formats*:
• 4Kp 29.97, 25, 24, 23.98

HD Video Formats*:
• 1080p 60, 59.94, 50, 29.97, 25, 24, 23.98
• 1080i 60, 59.94, 50
• 720p 60, 59.94, 50

HDMI Colour Space:
YCbCr, 4:2:2 12bit
RGB 8bit

SDI Colour Space:
YCbCr, 4:2:2 10bit

Network Video Protocols:
Full Bandwidth NDI

Analogue Audio I/O:
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)**

Digital Audio Output:
• Embedded with main HDMI, 24bit
• Embedded with SDI, 24bit
• Embedded with Network Video Stream

Onboard OLED Display:
None

Tally Light:
Bi-Colour Tally Front and Back
Network PTZ Control:
NDI Control (auto configuring), VISCA IP

Serial PTZ Control:
2x RJ45: RS232/RS422

Serial Control Protocol:
VISCA / Pelco D
Power Input:
12V DC, PoE+ (IEEE 802.3at)

Power Consumption:
Min. 23.2W – Max. 26.8W

Dimensions:
195x164x217mm

Weight:
2.7kg

Mount Options:
Ceiling mount, Wall mount, Tripod
Network Interface:
1x RJ45(1000Mb)

Web Control Interface:
Full control via Web/Mobile UI inc. Scene presets, Restful API

* Limited Resolution support over USB.
** NDI, HDMI, SDI only.

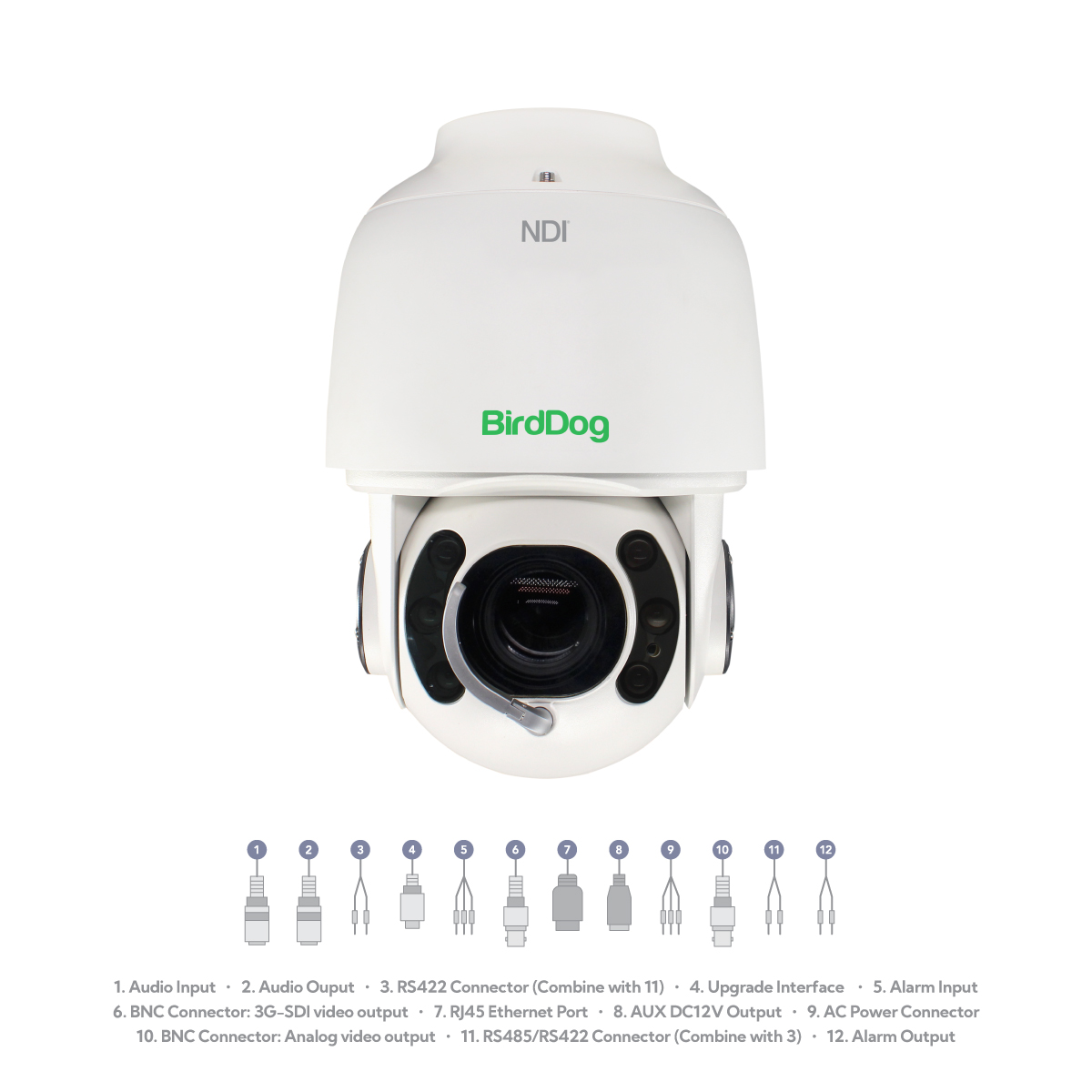

A200

Weatherproof Full NDI® PTZ.

Designed for fixed outdoor installations such as sports, the IP67 rating means A200 can withstand pretty much any weather conditions. By teaming up BirdDog’s custom NDI® silicon chip, a Sony CMOS backlit sensor, and a true Sony Image module A200 has lightning auto focus, incredibly sharp images, and insanely fast zoom. A200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI and Full NDI® simultaneously.

Technical Specifications:

Max. Resolution:
1080p

Sensor:
Sony Backlit

Sensor Resolution:
2.13MP

Sensor Format:
1/2.8”

Lens (W - T):
4.3 - 129mm

Optical Zoom:
30x

Digital Zoom:
12x

Horizontal Field of View:
63.7°(W) – 2.3°(T)

Vertical Field of View:
35.8°(W) - 1.3°(T)

Aperture:
F1.6(W) – F4.7(T)

Min. Illumination:
Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode),
0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode)

Shutter Speed:
1/1 - 1/10000s

Filter Ring:
None

Focus:
Auto, Push, Manual

White Balance:
Auto, Indoor, Outdoor, Manual, OPW, ATW

Exposure:
Auto, Manual, Shutter/Iris Priority

Pan Movement:
Horizontal: 360° continuous pan

Tilt Movement:
Vertical: -90º to +15º

Preset Positions:
255 (Speed adjustable: Up to 150°/s)

Preset Speed:
0-5 Level adjustable

Environmental:
Outdoor/Indoor, IP67, corrosion resistant treated housing

Quiteness:
-

Operating Temperature:
-40 to +60 (ºC)

Operating Humidity:
≤80%

Illumination:
Up to 250m

Video Outputs:
Network Video/SDI

4K Video Formats*:
-

HD Video Formats*:
• 1080p 60, 59.94, 50, 30, 29.97, 25
• 1080i 60, 59.94, 50
• 720p 60, 59.94, 50

HDMI Colour Space:
-

SDI Colour Space:
YCbCr, 4:2:2 10bit

Network Video Protocols:
Full Bandwidth NDI, NDI HX2 / HX3
in h.264, SRT, RTMP, RTSP

Analogue Audio I/O:
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)**

Digital Audio Output:
• Embedded with main HDMI, 24bit
• Embedded with SDI, 24bit
• Embedded with Network Video Stream

Onboard OLED Display:
None

Tally Light:
-
Network PTZ Control:
NDI Control (auto configuring), VISCA IP

Serial PTZ Control:
RS422/RS485 Connector

Serial Control Protocol:
VISCA / Pelco D
Power Input:
AC 24v, PoE 97W (BirdDog PoE 97W Injector, optional)

Power Consumption:
Min. 22W - Max. 68W

Dimensions:
210x210x333mm

Weight:
5.5Kg

Mount Options:
Ceiling mount, Wall mount, Pole mount, Corner mount
Network Interface:
1x RJ45(1000Mb)

Web Control Interface:
Full control via Web/Mobile UI inc. Scene presets, Restful API

* Limited Resolution support over USB.
** NDI, HDMI, SDI only.

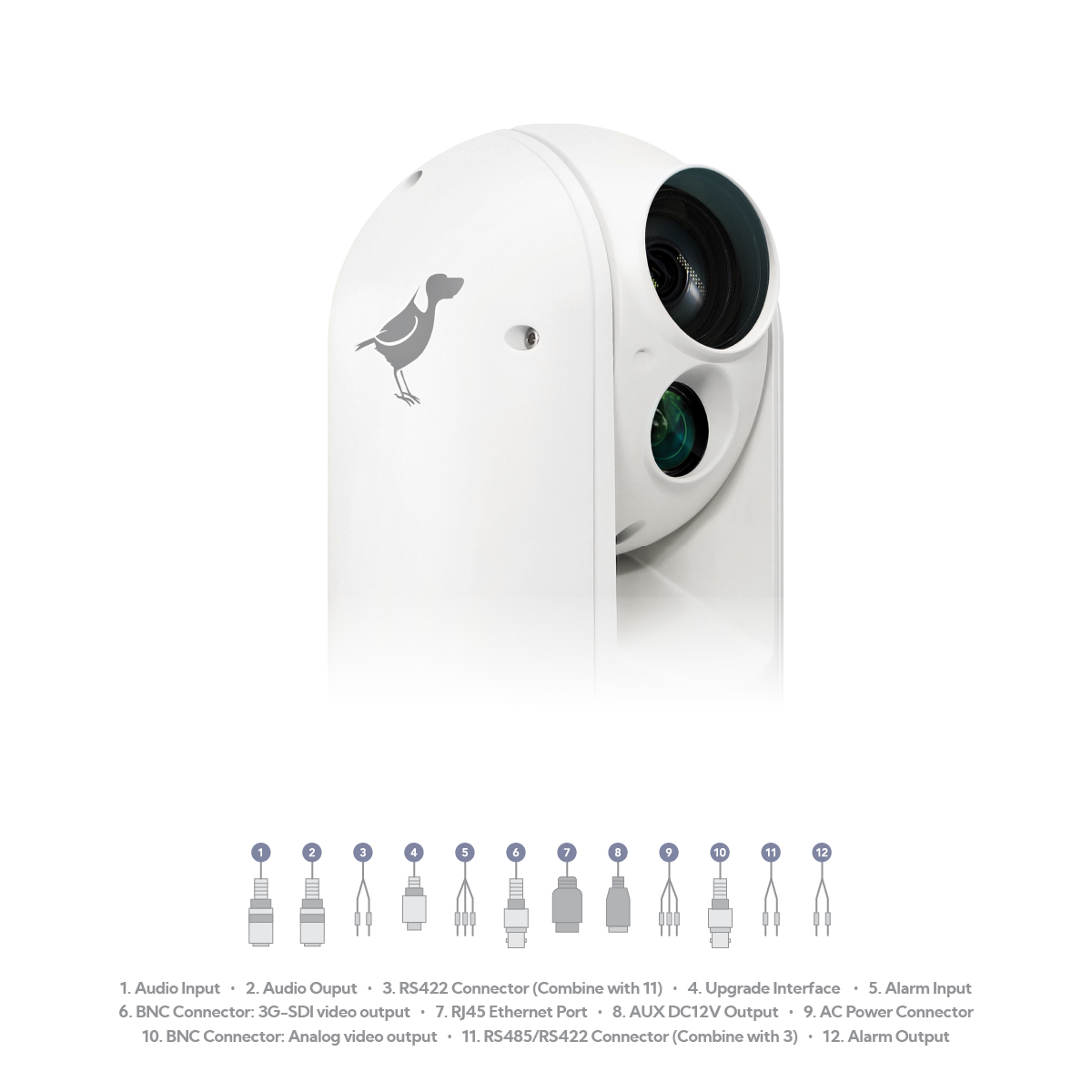

A300

Weatherproof Full NDI® PTZ.

Designed for fixed outdoor installations such as sports, the IP67 rating and the Wind Load Durability rating equal to that of a category 4 Hurricane, which means A300 can withstand pretty much any weather conditions. By teaming up BirdDog’s custom NDI® silicon chip, a Sony CMOS backlit sensor, and a true Sony Image module A300 has lightning auto focus, incredibly sharp images, and insanely fast zoom. A300 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI and Full NDI® simultaneously.

Technical Specifications:

Max. Resolution:
1080p

Sensor:
Sony Backlit

Sensor Resolution:
2.13MP

Sensor Format:
1/2.8”

Lens (W - T):
4.3 - 129mm

Optical Zoom:
30x

Digital Zoom:
12x

Horizontal Field of View:
63.7°(W) – 2.3°(T)

Vertical Field of View:
35.8°(W) - 1.3°(T)

Aperture:
F1.6(W) – F4.7(T)

Min. Illumination:
Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode),
0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode)

Shutter Speed:
1/1 - 1/10000s

Filter Ring:
None

Focus:
Auto, Push, Manual

White Balance:
Auto, Indoor, Outdoor, Manual, OPW, ATW

Exposure:
Auto, Manual, Shutter/Iris Priority

Pan Movement:
Horizontal: 360° continuous pan

Tilt Movement:
Vertical: +90º to -30º

Preset Positions:
255 (Speed adjustable: Up to 150°/s)

Preset Speed:
0-5 Level adjustable

Environmental:
Outdoor/Indoor, IP67, corrosion resistant treated housing,
Wind load durability 60m/s, Nitrogen filled housing

Quiteness:
-

Operating Temperature:
-40 to +60 (ºC)

Operating Humidity:
≤80%

Illumination:
IR Laser, up to 500m

Video Outputs:
Network Video/SDI

4K Video Formats*:
-

HD Video Formats*:
• 1080p 60, 59.94, 50, 30, 29.97, 25
• 1080i 60, 59.94, 50
• 720p 60, 59.94, 50

HDMI Colour Space:
-

SDI Colour Space:
YCbCr, 4:2:2 10bit

Network Video Protocols:
Full Bandwidth NDI, NDI HX2 / HX3
in h.264, SRT, RTMP, RTSP

Analogue Audio I/O:
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)**

Digital Audio Output:
• Embedded with main HDMI, 24bit
• Embedded with SDI, 24bit
• Embedded with Network Video Stream

Onboard OLED Display:
None

Tally Light:
-
Network PTZ Control:
NDI Control (auto configuring), VISCA IP

Serial PTZ Control:
RS422/RS485 Connector

Serial Control Protocol:
VISCA / Pelco D
Power Input:
AC 24v, PoE 97W (BirdDog PoE 97W Injector, optional)

Power Consumption:
Min. 36W - Max. 76.68W

Dimensions:
180x180x423mm

Weight:
10.2Kg

Mount Options:
Ceiling mount, Wall mount
Network Interface:
1x RJ45(1000Mb)

Web Control Interface:
Full control via Web/Mobile UI inc. Scene presets, Restful API

* Limited Resolution support over USB.
** NDI, HDMI, SDI only.

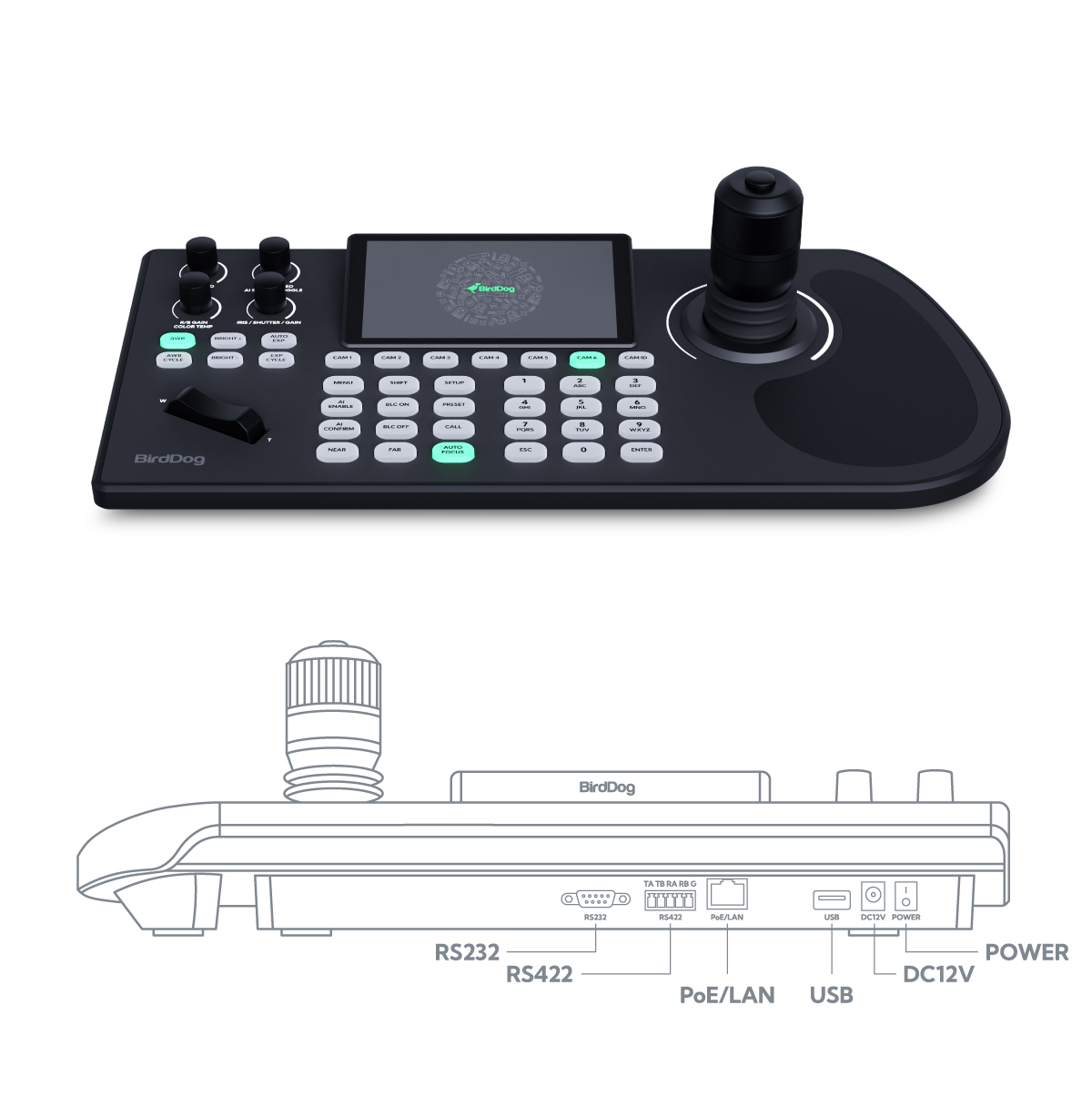

PTZ KEYBOARD

World’s First NDI® PTZ Controller.

BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for.



Technical Specifications:

• INPUT/OUTPUT CONNECTORS

Control Input/Output

LAN:
RJ45 x1 (With PoE) 100 BASE-TX

RS232:
RJ45 x1

RS422:
RJ45 x2

• CONTROL SIGNAL FORMAT

NDI® CONTROL

VISCA over IP

RS 232/ RS422:
Baud Rate 2400 / 4800 / 9600 / 19200 / 38400
(Sony VISCA Compatible)

• USER INTERFACE

Display:
LED

Speed control:
YES, 2 knobs (pan/tilt, zoom)

Zoom rocker:
YES

Zoom ring ibn joystick:
YES

Programmable function buttons:
6

• CAMERA CONTROL

Maximum camera control:
Max. 255 with multiple protocols including NDI/IP

Maximum serial connections:
RS232:
7
RS422:
7

Key/Button illumination:
Multi-colour LED

• GENERAL

Power input:
DC 12V, PoE (Power over Ethernet), Power via RS232/RS422 port

Current:
3W

Operating Temp:
0-40 (ºC)

Dimensions:
278x132x99.5mm

• BUTTONS

Exposure Selection:
Yes, Button

One push White balance:
es, Button

Backlight control:
Yes, Button

Display status of WB, Iris, Gain, Shutter, Focus:
Yes

White balance model selection:
Yes, Button

R, B, Gain:
Yes, Knob

Iris Adjustment:
Yes, Knob

Shutter Speed:
Yes, Knob

Focus model selection:
Yes, Button

One push auto focus:
Yes, Button

Manual focus:
Yes, Knob

Notes: Not all features are available on all control protocols
Scroll to Top
