4K HDMI
 |
1x HDMI 2.0 Input 1x HDMI 2.0 Output 1x 12G SDI Output |
4K SDI
 |
1x HDMI 2.0 Output 1x 12G SDI Input 1x 12G SDI Output |

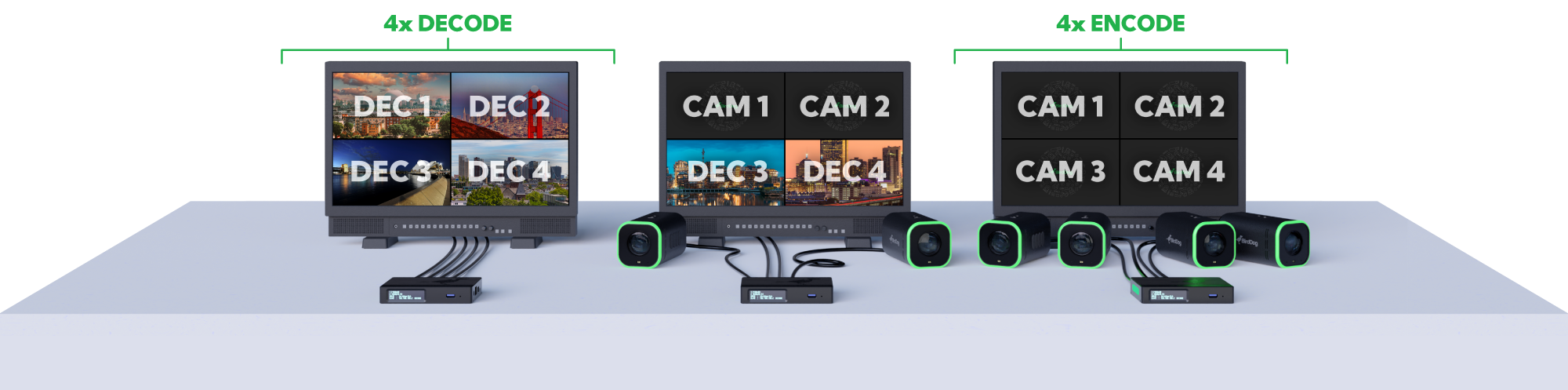

4K QUAD
 |
1x HDMI 2.0 Output 4x 12G SDI Input/Output |
*Pricing and specifications are subject to change.
Next Level NDI® Tools.
Following on from the award winning HD NDI® products, the 4K Family has been engineered from the ground up for real-world users. Built around BirdDog’s custom NDI® silicon chip and housed in an aircraft grade aluminium case, features include 12G SDI and HDMI 2.0 inputs and outputs, built-in cross converter, SFP+ port for 10GbE connectivity, active loop outs, audio intercom system, NDI® tally system, PoE, and compatibility with BirdDog’s Comms Pro and Central Pro apps.
Encode & Decode up to 4Kp60.*
With support for all resolutions up to 4Kp60, including all HD resolutions, Encoding and Decoding 4K Full NDI® has never been easier.
12G & HDMI 2.0 connections.
All SDI connectors on the 4K line are 12G SDI, including all four SDI connectors on 4K Quad. All the HDMI connectors are 2.0 for maximum compatibility with your sources and destinations. The HDMI port is not enabled on QUAD.
* Current firmware supports all encode or all decode.
SFP+ for 10GbE & long range.
Industry standard SFP+ connection allows for short, medium, and long range connections over fiber and supports Ethernet protocols from 1GbE to 10GbE.
NDI Tally that just works.
A full Tally system is built right into the 4K Family and it requires zero configuration. Includes a built-in large Tally light for your on-air talent to easily see which camera is live, plus user selectable Tally borders on loop out.
Cross Converter.
4K SDI and 4K HDMI include a built-in cross converter and any of the 12G SDI inputs can be looped out the HDMI 2.0 port and any of the HDMI 2.0 inputs can be looped out the 12G SDI. This function is not available in QUAD.
RESTful API. DIY automation.
Download the free BirdDog RESTful API and program your own automation for all BirdDog hardware endpoints, including cameras.
Distribute NDI® content everywhere.
Just add Central 2.0.
BirdDog Central 2.0 is a software platform set to redefine the way we think about driving content to TV screens. By teaming up Central 2.0 with any NDI® source, including all BirdDog hardware capable of creating NDI® sources, you can now drive your NDI® streams to any BirdDog Studio NDI, Mini or 4K Family to decode NDI® back to SDI or HDMI. For more information on Central 2.0 click here.
Free Software Tools.
Central 2.0 Lite.
Powerful NDI® Routing.
Central 2.0 Lite ushers in a new era of NDI® routing control. Browser-based, real-time NDI® routing with support for 2 receivers and a media playback engine, Central 2.0 Lite is a fantastic tool for all BirdDog users.
Comms Lite.
Enter the World of NDI® Audio Intercom.
Comms Lite is your free Audio Intercom solution. With support for four BirdDog devices, plus a director, Comms Lite is a great way to start using Audio Intercom in your live productions.
DYNO.
Visual NDI®network performance monitoring.
DYNO is a window into your NDI® network performance. Test your network speed, performance, and stability with a single NDI stream or multiple streams. Now you can be confident your network can deliver rock-solid NDI® streams to your hardware and software receivers. All in a beautiful interface.
BirdDog Together.
Free Central Pro and Comms Pro Offer.
BirdDog is pleased to offer free Central Pro and Comms Pro worth $598 to all our Educational, House of Worship, and Not for Profit customers.
BirdDog Dashboard.
Open up a web browser (Chrome preferred) on the same network as your converter and login into BirdUI for total control of all settings. Change resolutions and frame rates, unlock new features with the latest firmware, and more.
Fleet Manager.
Total Control of your BirdDog Devices.
Fleet Manager is the ultimate tool for controlling all your BirdDog devices from a single interface. Update firmware, monitor activity status, view IP address, access the BirdUI, and even change device name and stream name.
Free Comms Lite. Upgrade to Comms Pro.
4K Family includes free Audio Intercom software, Comms Lite. Comms Lite supports four BirdDog devices and one Director. For more information on Comms Lite and how to get your free copy click here.
Need a more powerful Audio Intercom solution? Comms Pro gives you all the amazing features of Comms Lite plus allows you to create up to five groups, adds additional push to talk buttons for the director, ability to change groups on the fly, plus more. Comms Pro is just $299 and you can read more about it here.
